Tootekood:79420-GBY
Tootja: Goobay

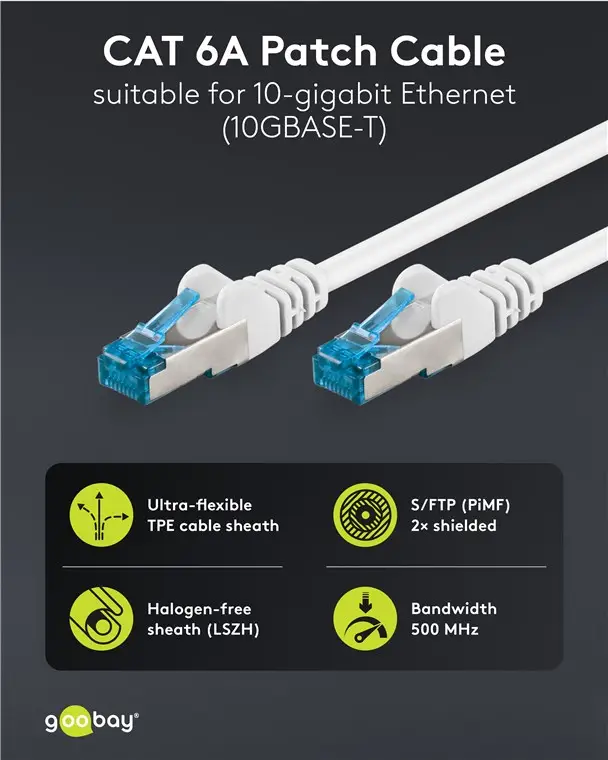

Ultra-Flexible CAT 6A Patch Cable S/FTP (PiMF), white
Pilt on illustratiivne
copper conductor (CU), halogen-free TPE cable sheath (LSZH)
The new flexibility: CAT cable with ultra-flexible TPE sheath for easy handling and especially effective LSZH protection
Simply connected: Double-shielded LAN cable with 2x RJ45 plugs for connecting network components at home, in the office, in the server cabinet, etc.
Fast, faster, CAT 6A: As a CAT 6A network cable, suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
S/FTP overall shielding: Aluminium foil shielding around the individual wire pairs (PiMF) and aluminium braided shielding under the cable sheath
Top quality: High-quality copper conductor (CU) and 3µ gold-plated contact surfaces for a high-performance connection, as well as length indication on the overmoulded slimline bend protection sleeve
Always a favourite with LSZH: Compliant with the applicable standards IEC 60332-1 (flame retardant), IEC 61034 (low smoke) and IEC 60754-2 (halogen-free)
The internet cable is suitable for Power over Ethernet (PoE, PoE+)
A CATegory of their own: With their soft TPE sheath, these CAT cables are significantly more flexible than conventional cables with PVC sheathing – for improved handling and a super-soft feel.
Pull the plug on your old PVC cable and switch to TPE – in your mobile office, server rack or streaming setup.

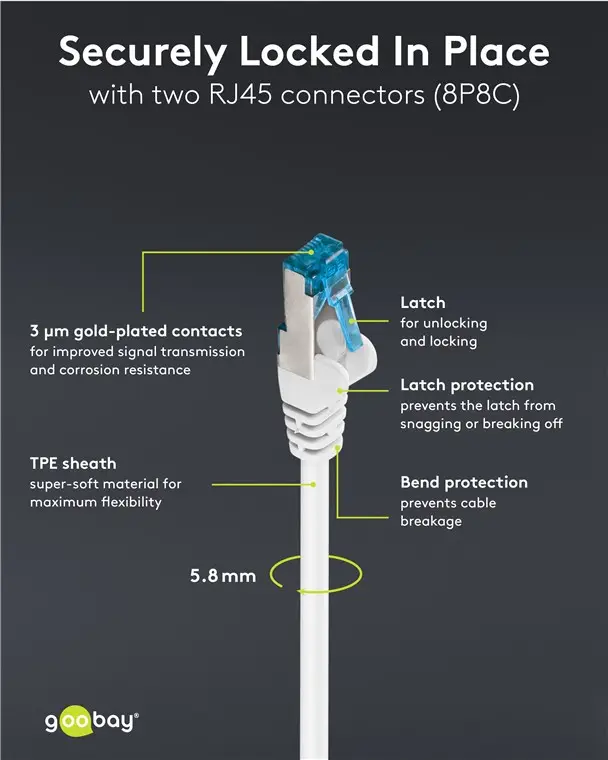

Connection, type: RJ45 male (8P8C)
Latch protection: yes
Connection 2, type: RJ45 male (8P8C)
Material cable sheath: LSZH-TPE
Connection, contact material: gold-plated 3µm
Cable type: super-flexible roundcable
Inner conductor material: CU (copper)
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Kink protection: both sides
Color version: white
Color: white
Special feature: Length indication on connector
Consumption Unit: 1 pc. bulk
Packaging type: Cable Tag
Contacting: EIA/TIA-568 B
Specification: CAT 6A
Shielding class: S/FTP (PiMF)
bending radius >: 46 mm
max. bandwidth: 500 MHz

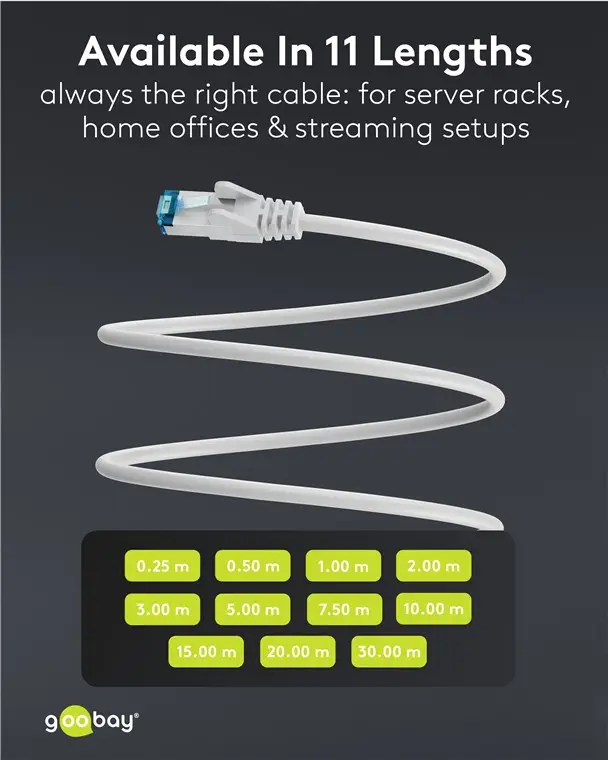

Cable length: 30 m
Cable sheath diameter (approx.): 5.8 mm
Number of shieldings: 2 x
AWG: 27/7 (stranded)
Impedance: 100 Ω
Markings: WEEE, CE
Operating temperature up to: 50 °C
