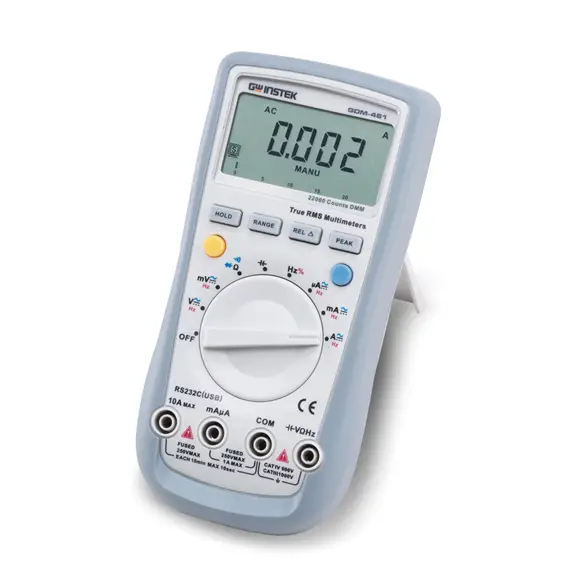

Multimeter GW INSTEK GDM-461 ACV/DCV/ACA/DCA/R/C/f/% TRMS RS232C
SKU:GDM-461
Manufacturer:GW Instek
The GDM-461 is a Handheld Digital Multimeter with 22,000 counts display, true RMS measurement and RS-232C interface. The GDM-400-series handheld DMM is a compact, high precision, battery operated multimeter series designed to meet of service engineers. Design is driven by mobile oriented features automatic power off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation and temperature measurement for outdoor use. The basic functions match the depth of bench-top multimeters fuse-protected current input, true RMS for accurate AC measurements, auto ranging, duty cycle and relative mode. This compact, reliable and economical device is ideal for any engineer.
Function: Measuring range: Accuracy:DC voltage: 220mV ~ 1000V ± (0.1% + 2)AC voltage: 220mV ~ 750V ± (0.8% + 10)DC current: 220µA ~ 10A ± (0.5% + 10)AC current: 220µA ~ 10A ± (0.8% + 10)Resistance: 220Ω ~ 220MΩ ± (0.5% + 10)Capacitance: 22nF ~ 220mF ± (3.0% + 5)Frequency: 10Hz ~ 220MHz ± (0.01% + 5)Diode test: open circuit voltage 2.8V (resolution: 0.0001V)
