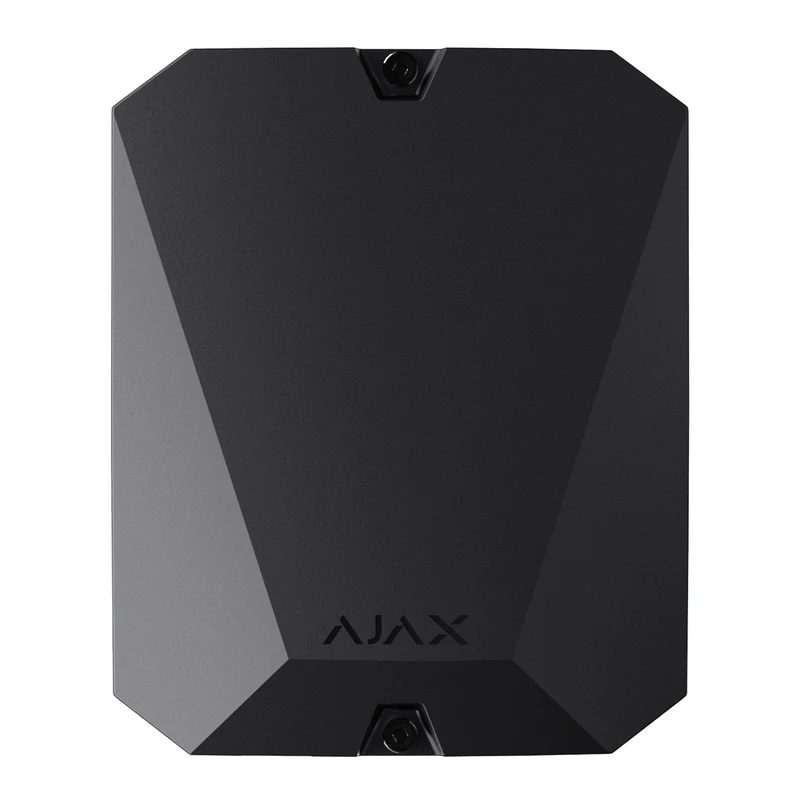

Wired alarm renovation. Tens of detectors and kilometers of wire can now effortlessly be transformed into a modern smartphone-controlled security system. Replacing the old security control panel, the module connects wired devices to a hub and makes them a full-fledged part of Ajax. MultiTransmitter is a step towards awareness and reliability. For a security company, it opens the possibility to configure the equipment remotely, and users get all the benefits of managing the system through an app.
More Ajax features
IR barriers, household gas, temperature, liquid level detectors, and much more — with MultiTransmitter, these devices are ready to expand the Ajax areas of use. And wired connectivity and support of international security industry standards ensure full compatibility.
New features of old devices
MultiTransmitter has 18 wired zones, each of which can be configured in the Ajax app. The detectors connected to the zones can be active 24/7, operate with entering or exiting delay, activate sirens if necessary, and participate in automation scenarios. With MultiTransmitter, the old alarm system becomes part of a secure and smart home.
Number of alarm/tamper zones: 18
Supported detector contact types: NO, NC (without R), EOL (NC with R), EOL (NO with R)
Resistance of the EOL resistor: 1 kΩ to 7.5 kΩ
Alarm signals processing mode: Pulsed or bistable
Main power supply: 110–255 V, 50/60 Hz
Backup power: 12 V DC
Supported battery type: Battery with 4 or 7 A⋅h capacity (not included)
Detector power supply: 12 V DC, up to 1 A for all detector power supply outputs
Protection against dismantling: Tamper
Radio signal frequency band: 868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region
Compatibility: Operates only with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
Maximum radio signal power: Up to 7.29 mW (25 mW limit)
Radio signal range: Up to 2,000 m in the line of sight
Operating temperature range: From -10°С to +40°С
Operating humidity: Up to 75%
Dimensions: 196 × 238 × 100 mm
Weight: 805 g
Complete set: MultiTransmitter board, Body, Installation kit, Power cable, User Guide
