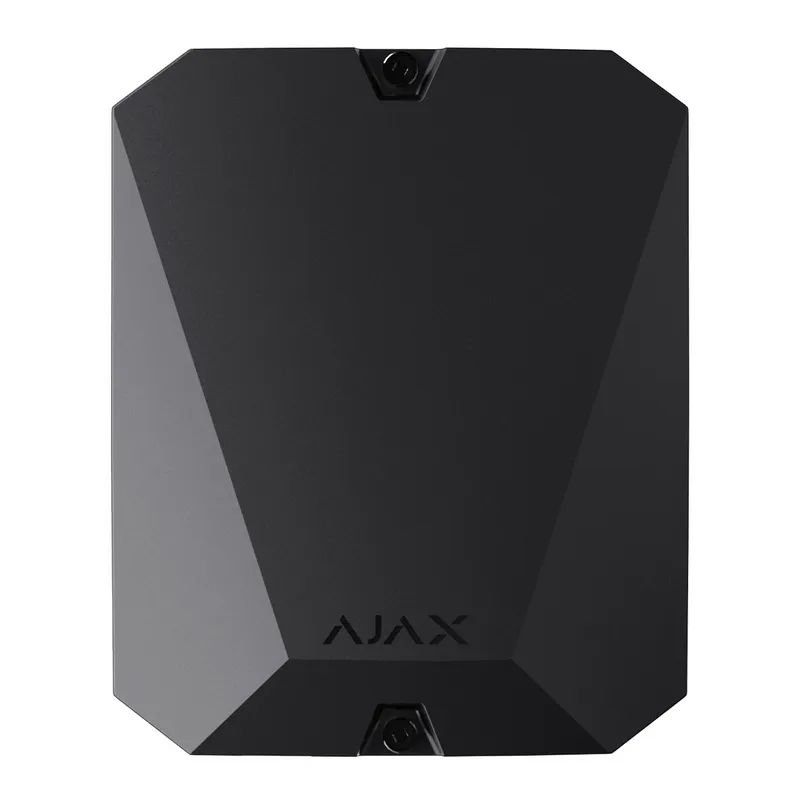

Pilt on illustratiivne
AJAX Multitransmitter Must
- 145.00 €
-
- Püsikliendile 137.75 € -5%
- Logi sisse ja saad vähemalt 5% soodustust
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Number of alarm/tamper zones
18
Supported detector contact types
NO, NC (without R), EOL (NC with R), EOL (NO with R)
Resistance of the EOL resistor
1 kΩ to 7.5 kΩ
Alarm signals processing mode
Pulsed or bistable
Main power supply
110–255 V, 50/60 Hz
Backup power
12 V DC
Supported battery type
Battery with 4 or 7 A⋅h capacity (not included)
Detector power supply
12 V DC, up to 1 A for all detector power supply outputs
Protection against dismantling
Tamper
Radio signal frequency band
868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region
Compatibility
Operates only with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
Maximum radio signal power
Up to 7.29 mW (25 mW limit)
Radio signal range
Up to 2,000 m in the line of sight
Operating temperature range
From -10°С to +40°С
Operating humidity
Up to 75%
Dimensions
196 × 238 × 100 mm
Weight
805 g
Complete set
MultiTransmitter board
Body
Installation kit
Power cable
User Guide
