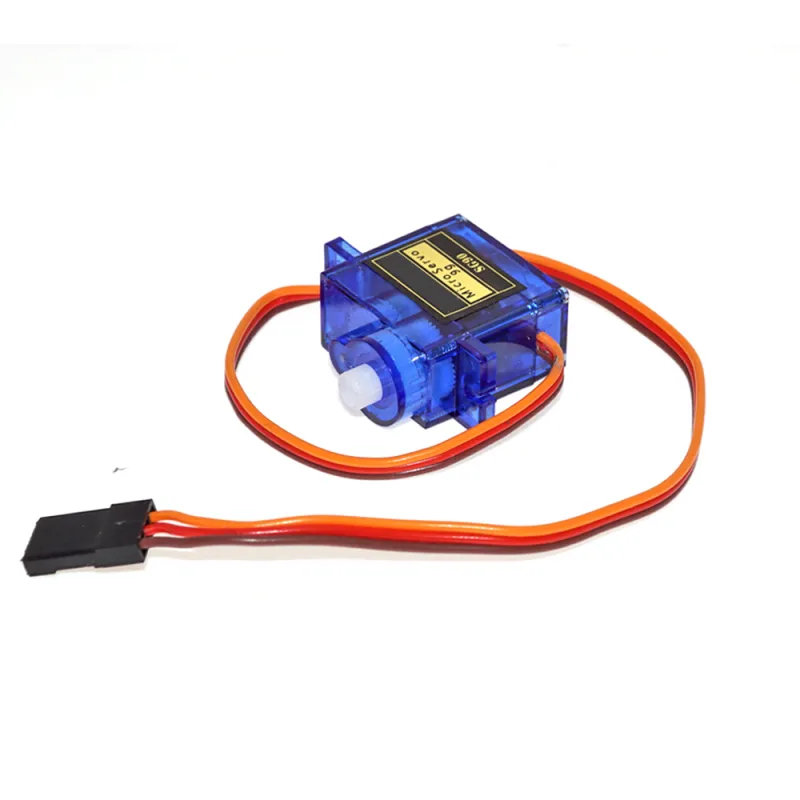

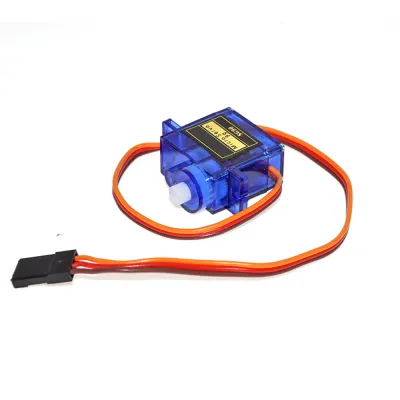

Micro servo motor 3.5-6V 1.2kg/cm(4.8V) SG90 360 Deg
SKU:OKY8003-1
Manufacturer:Okystar
Image is for illustrative purposes only
The OKY8003-1 micro servo motor, also known as the SG90 360-degree continuous rotation servo, is a versatile and popular choice for projects requiring continuous motion. This micro-sized servo motor operates like a DC motor with integrated control, making it ideal for a wide range of applications.
General Information
This servo is expertly designed for lightweight applications where continuous rotation is essential, such as driving wheels on small robots or powering rotating mechanisms.
Its ease of control with microcontrollers like Arduino makes it a superb choice for hobbyists and educational projects.
Key Features
- Continuous Rotation: Rotates continuously in either direction, providing versatile movement without positional control.
- Compact Size: Small and lightweight, making it suitable for projects with limited space.
- Ease of Use: Can be easily controlled using standard servo libraries and PWM signals.
- Versatile Applications: Ideal for robotics, RC models, and various DIY projects.
- Accessories Included: Comes complete with servo horns and mounting screws for effortless installation.
Applications and Benefits
- Robotics: Perfectly suited for driving wheels on small robots, enabling smooth movement and precise navigation.
- RC Models: An excellent choice for RC aircraft, cars, and boats where continuous rotation is a key requirement.
- DIY Projects: Can be creatively used in a multitude of DIY projects, such as rotating displays or engaging animated mechanisms.
- Educational Purposes: A fantastic tool for teaching fundamental robotics and programming concepts.
Operation
The servo's rotation is precisely controlled by a PWM signal.
A pulse width of approximately 1.5ms (1500µs) will bring the motor to a stop.
A longer pulse commands forward rotation, while a shorter pulse initiates backward rotation.
The speed of rotation is directly proportional to the difference from the 1.5ms pulse.
Additional Information
- The servo features a standard 3-pin connector: Brown (Ground), Red (VCC), and Orange (Signal).
- It offers seamless compatibility with Arduino servo libraries, ensuring easy integration into Arduino-based projects.
- The gears are typically constructed from durable nylon, striking an optimal balance between strength and weight.
Important Note
To ensure optimal performance and prevent erratic behavior, it's crucial to provide a stable power supply when using this servo.
Adding a capacitor across the power and ground can significantly help stabilize the voltage and effectively reduce noise.
General Information
This servo is expertly designed for lightweight applications where continuous rotation is essential, such as driving wheels on small robots or powering rotating mechanisms.
Its ease of control with microcontrollers like Arduino makes it a superb choice for hobbyists and educational projects.
Key Features
- Continuous Rotation: Rotates continuously in either direction, providing versatile movement without positional control.
- Compact Size: Small and lightweight, making it suitable for projects with limited space.
- Ease of Use: Can be easily controlled using standard servo libraries and PWM signals.
- Versatile Applications: Ideal for robotics, RC models, and various DIY projects.
- Accessories Included: Comes complete with servo horns and mounting screws for effortless installation.
Applications and Benefits
- Robotics: Perfectly suited for driving wheels on small robots, enabling smooth movement and precise navigation.
- RC Models: An excellent choice for RC aircraft, cars, and boats where continuous rotation is a key requirement.
- DIY Projects: Can be creatively used in a multitude of DIY projects, such as rotating displays or engaging animated mechanisms.
- Educational Purposes: A fantastic tool for teaching fundamental robotics and programming concepts.
Operation
The servo's rotation is precisely controlled by a PWM signal.
A pulse width of approximately 1.5ms (1500µs) will bring the motor to a stop.
A longer pulse commands forward rotation, while a shorter pulse initiates backward rotation.
The speed of rotation is directly proportional to the difference from the 1.5ms pulse.
Additional Information
- The servo features a standard 3-pin connector: Brown (Ground), Red (VCC), and Orange (Signal).
- It offers seamless compatibility with Arduino servo libraries, ensuring easy integration into Arduino-based projects.
- The gears are typically constructed from durable nylon, striking an optimal balance between strength and weight.
Important Note
To ensure optimal performance and prevent erratic behavior, it's crucial to provide a stable power supply when using this servo.
Adding a capacitor across the power and ground can significantly help stabilize the voltage and effectively reduce noise.
Cable Length: 25 cm
Dead Band Width: 10 μs
Dimensions: 23 x 12.2 x 29 mm
Gear Type: Nylon gear set
Neutral Location: 1500 us
Operating Speed @4.8V: 0.12 sec/60 degrees
Operating Temperature: 0 - 55 degrees Celsius
Operating Voltage: 3.5 - 6 V
Rotation Angle: 360 degrees (continuous)
Servo Plug: JR (Fits JR and Futaba)
Stall Torque @ 6.0V: 1.6 kg/cm
Stall Torque @4.8V: 1.2 kg/cm
Weight: 9 g
Working Speed @ 6.0V: 0.10 sec / 60 degrees
Dead Band Width: 10 μs
Dimensions: 23 x 12.2 x 29 mm
Gear Type: Nylon gear set
Neutral Location: 1500 us
Operating Speed @4.8V: 0.12 sec/60 degrees
Operating Temperature: 0 - 55 degrees Celsius
Operating Voltage: 3.5 - 6 V
Rotation Angle: 360 degrees (continuous)
Servo Plug: JR (Fits JR and Futaba)
Stall Torque @ 6.0V: 1.6 kg/cm
Stall Torque @4.8V: 1.2 kg/cm
Weight: 9 g
Working Speed @ 6.0V: 0.10 sec / 60 degrees
-
