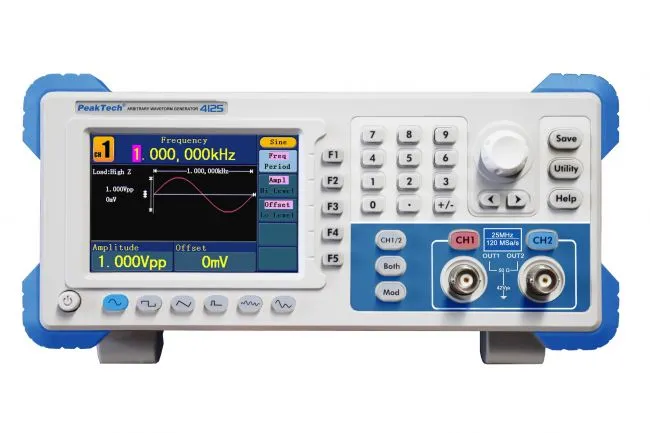

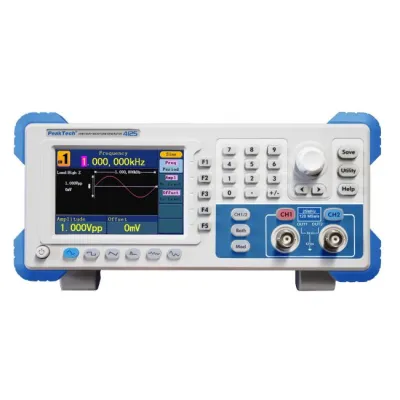

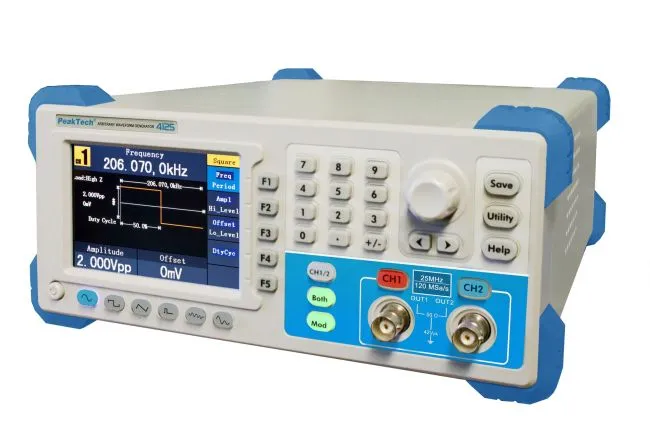

2CH arbitrary function generator, 1 µHz - 25 MHz
SKU:PT4125-ET
Manufacturer:PeakTech
Image is for illustrative purposes only
This **arbitrary** waveform **generator** with the latest **graphic** user control has **excellent** technical properties and a variety of functions.
Particularly noteworthy are the **two** equivalent output **channels**, the **easy operation** via different menu buttons, the **wide range** of functions and the many different types of modulation.
This makes this generator perfect for almost all tasks in education, research and development.
Particularly noteworthy are the **two** equivalent output **channels**, the **easy operation** via different menu buttons, the **wide range** of functions and the many different types of modulation.
This makes this generator perfect for almost all tasks in education, research and development.
USB:: ■
Amplitude:: 0 - 20 Vpp
Bandwidth:: 25 MHz
Channels:: 2 CH
Display Type:: Color-TFT
Freq. resolution:: 1 µHz
Modulation:: AM, FM, FSK, PM
RS-232:: ■
Sampling Rate:: 125 MS/s
Sine:: 1 µHz - 25 MHz
Square:: 1 µHz - 5 MHz
Ramp:: 1 µHz - 1 MHz
Pulse:: 1 µHz - 5 MHz
Arbitrary:: 1 µHz - 10 MHz
Large 10 cm (3.9 “) TFT digital display for both channels simultaneously
Two independent output channels with the same characteristics
1µHz frequency resolution for the entire bandwidth
125 MSa / s sampling rate at 14 bit vertical resolution
6 standard waveforms(sine, square, triangle, DC etc.)
45 arbitrary waveforms(Hamming, Gaussian, Trapez etc.)
Integrated waveform editor, storable on USB data carrier
4 types of modulation(AM, FM, PM, FSK)
Channel coupling, sweep and burst function
Integrated menu controlled 200 MHz frequency counter
Remote control and waveform editing software
Safety: EN 61010-1
Accessories: power cord, USB interface cable, software for Windows 2000 / XP / VISTA / 7/8/10, BNC cable and manual on CD
Amplitude:: 0 - 20 Vpp
Bandwidth:: 25 MHz
Channels:: 2 CH
Display Type:: Color-TFT
Freq. resolution:: 1 µHz
Modulation:: AM, FM, FSK, PM
RS-232:: ■
Sampling Rate:: 125 MS/s
Sine:: 1 µHz - 25 MHz
Square:: 1 µHz - 5 MHz
Ramp:: 1 µHz - 1 MHz
Pulse:: 1 µHz - 5 MHz
Arbitrary:: 1 µHz - 10 MHz
Large 10 cm (3.9 “) TFT digital display for both channels simultaneously
Two independent output channels with the same characteristics
1µHz frequency resolution for the entire bandwidth
125 MSa / s sampling rate at 14 bit vertical resolution
6 standard waveforms(sine, square, triangle, DC etc.)
45 arbitrary waveforms(Hamming, Gaussian, Trapez etc.)
Integrated waveform editor, storable on USB data carrier
4 types of modulation(AM, FM, PM, FSK)
Channel coupling, sweep and burst function
Integrated menu controlled 200 MHz frequency counter
Remote control and waveform editing software
Safety: EN 61010-1
Accessories: power cord, USB interface cable, software for Windows 2000 / XP / VISTA / 7/8/10, BNC cable and manual on CD
-
