ZK-PP1K PWM Pulse Frequency Duty Cycle Adjustable Module Square Wave Rectangular Wave Signal Generator
SKU:OKY3496-16
Manufacturer:Okystar

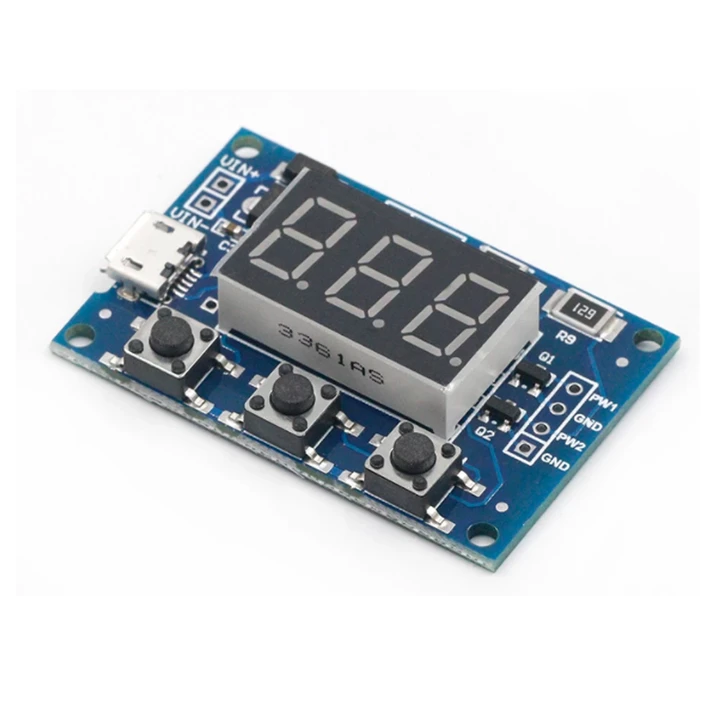

Image is for illustrative purposes only
The ZK-PP1K is a versatile signal generator module designed to produce adjustable square wave electrical signals. It features a clear, high-definition LCD screen for convenient on-the-fly configuration of frequency and duty cycle.
Key Features
- Dual Operating Modes: Supports both PWM mode for continuous pulse-width modulation and PULSE mode for generating a specific number of pulses.
- Flexible Control: Can be operated using the onboard start/stop button or controlled remotely via an external switch.
- Wide Voltage Input: Accommodates a broad power supply range from 3.3V to 30V, with integrated reverse polarity protection for enhanced safety.
- User-Friendly Interface: Equipped with a high-definition LCD that clearly displays settings, simplifying adjustments.
- Secure Connectivity: Utilizes standard 5.08mm screw terminals for reliable wiring.
Applications
This module is well-suited for generating control signals in various automation and testing environments. It can be used to drive DC motor controllers and stepper motor drivers, operate servo drives and electric grippers, or serve as a simple pulse source in applications that might otherwise require a PLC.
Key Features
- Dual Operating Modes: Supports both PWM mode for continuous pulse-width modulation and PULSE mode for generating a specific number of pulses.
- Flexible Control: Can be operated using the onboard start/stop button or controlled remotely via an external switch.
- Wide Voltage Input: Accommodates a broad power supply range from 3.3V to 30V, with integrated reverse polarity protection for enhanced safety.
- User-Friendly Interface: Equipped with a high-definition LCD that clearly displays settings, simplifying adjustments.
- Secure Connectivity: Utilizes standard 5.08mm screw terminals for reliable wiring.
Applications
This module is well-suited for generating control signals in various automation and testing environments. It can be used to drive DC motor controllers and stepper motor drivers, operate servo drives and electric grippers, or serve as a simple pulse source in applications that might otherwise require a PLC.
Delay output time: 0.000s-9999s, the minimum can be set 1ms
Duty cycle range: 0-100%, 1% stepping
Frequency range: 1Hz~150KHz, accuracy about 1%
Number of pulses: 1-9999, or infinite
Output signal amplitude: amplitude is equal to the supply voltage
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms
Product Weight: 40g
Product size: 79mm*43mm*30mm
Signal carrying capacity: less than 30mA
Working voltage: 3.3V~30V, with anti-reverse protection
Duty cycle range: 0-100%, 1% stepping
Frequency range: 1Hz~150KHz, accuracy about 1%
Number of pulses: 1-9999, or infinite
Output signal amplitude: amplitude is equal to the supply voltage
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms
Product Weight: 40g
Product size: 79mm*43mm*30mm
Signal carrying capacity: less than 30mA
Working voltage: 3.3V~30V, with anti-reverse protection
-
