Ultrasonic sensor MB7092

CThe XL-MaxSonar-WRMA1 ignores smaller targets and only reports the range to target with the largest acoustic return. This is our most advanced weather resistant sensor designed for target detection and ranging outdoors or in tank or bin applications.

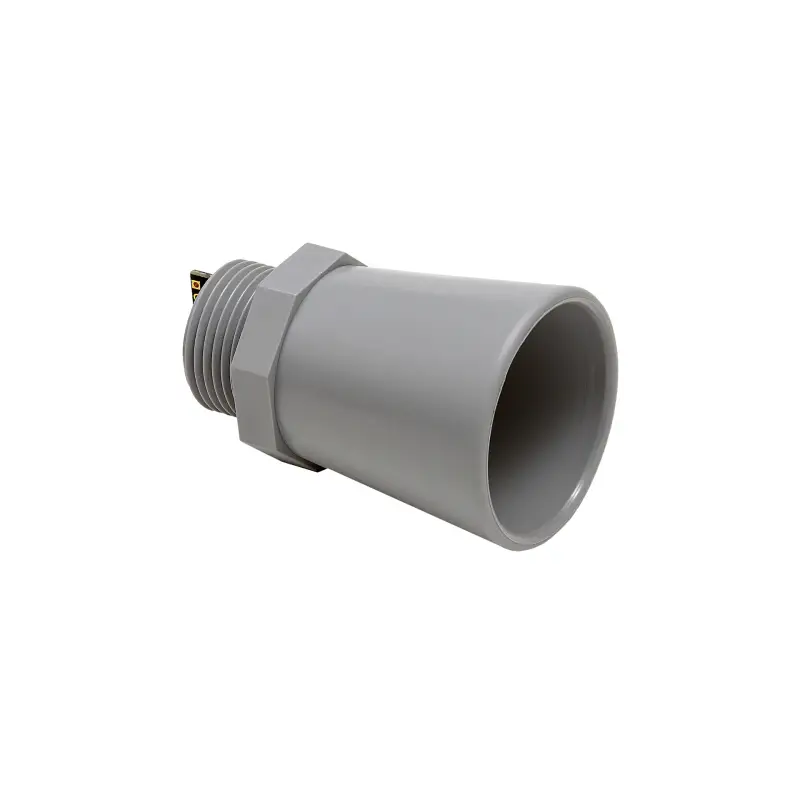

The weather resistant XL-MaxSonar-WRMA1 is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.
Features:
Resolution of 1 cm
10Hz read rate
42kHz Ultrasonic sensor measures distance to objects
RoHS Compliant
Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
Operates from 3.0-5.5V
Low 3.4mA average current requirement
Small, light weight module
Designed for easy integration into your project or product
Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
Real-time automatic calibration (voltage, humidity, ambient noise)
Firmware filtering for better noise tolerance and clutter rejection
More information at MaxBotix website: MB7092
