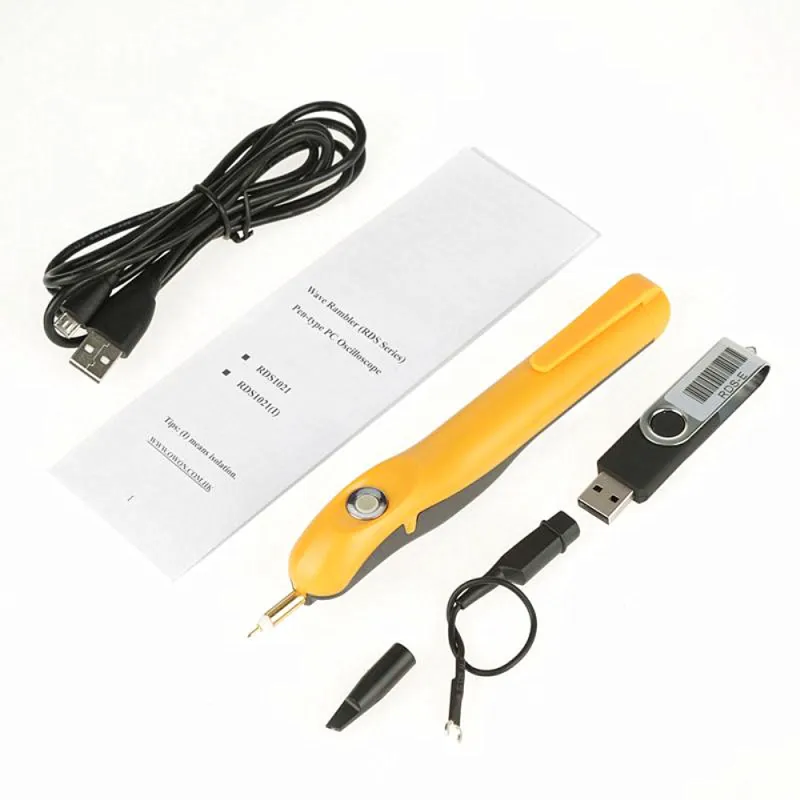

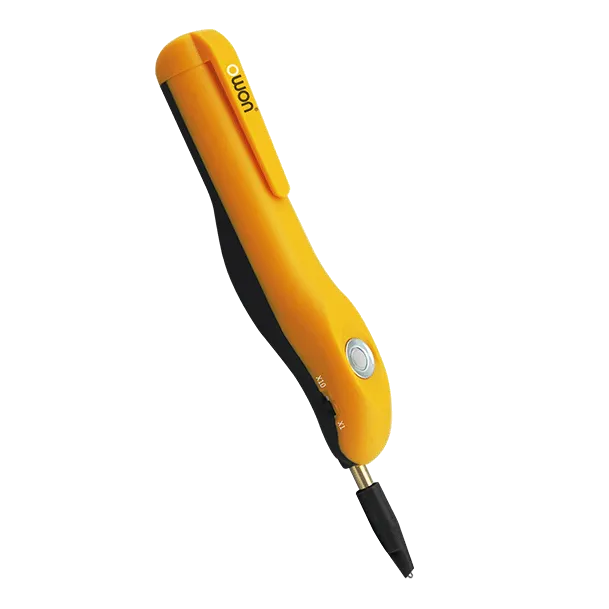

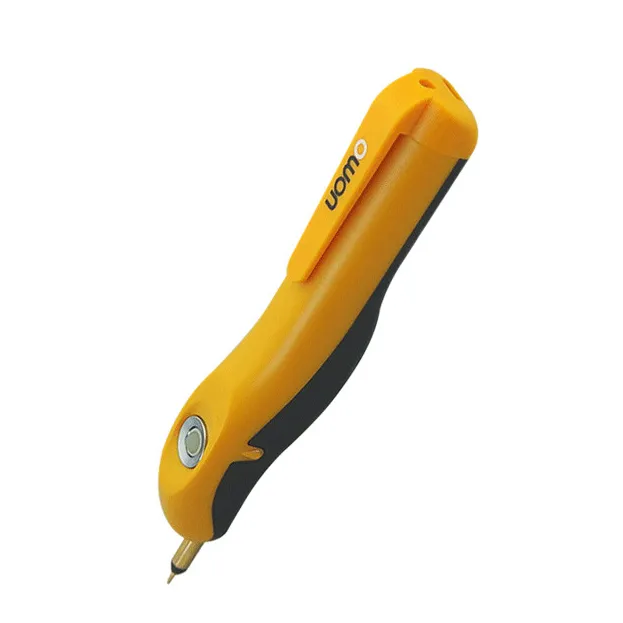

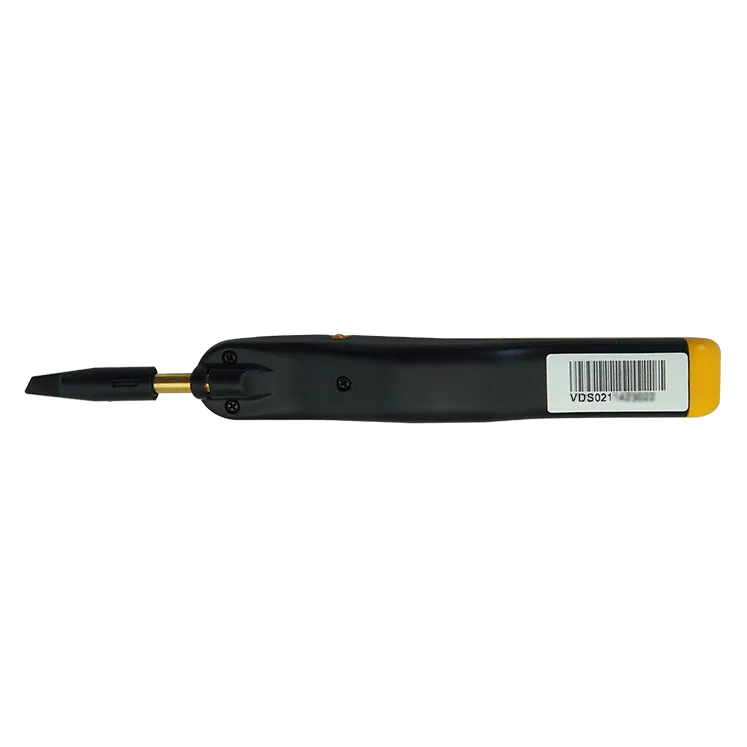

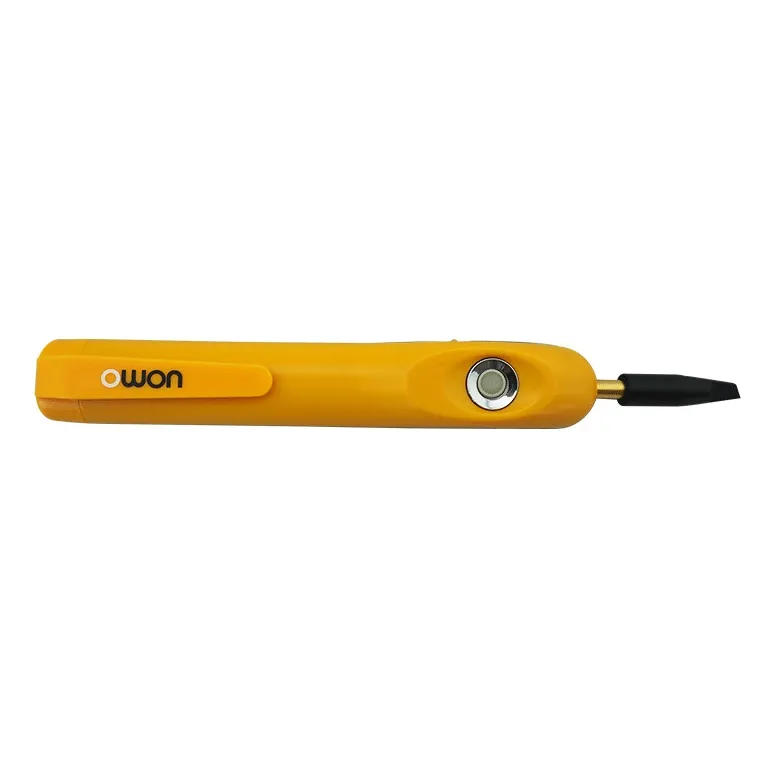

Pen-Type PC Oscilloscope with optional USB 25MHz 100MS/s
Image is for illustrative purposes only
This newly developed Pen-type PC oscilloscope with a bandwidth of up to 25 MHz and a sampling rate of 100 MSa/s ideally suited for mobile use on the laptop. The applications are nearly limitless. Wherever a small, lightweight, powerful and easy-to-use osc.
25MHz bandwidth
100MS/s sample rate
5K record length
FFT function
Multi- action mode via creative trackball
Multi- trigger option: edge, slope, and pulse
5mV micro signals supported
USB bus powered, with optional USB isolated function
Easy portability, fits in a shirt pocket
Bandwidth 25MHZ
Sample Rate 100MSa/s
Horizontal Scale (s/div) 5ns/div - 100s/div, step by 1 - 2 - 5
Rise Time ≤14ns
Record Length 5K
Vertical Resolution (A/D) 8 bits
Max Input Voltage 400V (DC + AC peak)
Vertical Sensitivity 5mV/div - 5V/div
Trigger Type Edge, Pulse, and Slope
Trigger Mode Auto, Normal, and Single
Acquisition Mode Sample, Peak Detect, and Average
Communication Interface USB 2.0 (isolation)
Dimensions (W × H × D) 150 x 20 x 18 (mm)
Device Weight 0.27 kg
-
