Thermostat 2 heating/cooling -50..+110C 250VAC 5A ZFX-ST3012
- SKU: URZ4054
- 28.00 €
-
- Customer price 26.60 € (-5%)
Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1

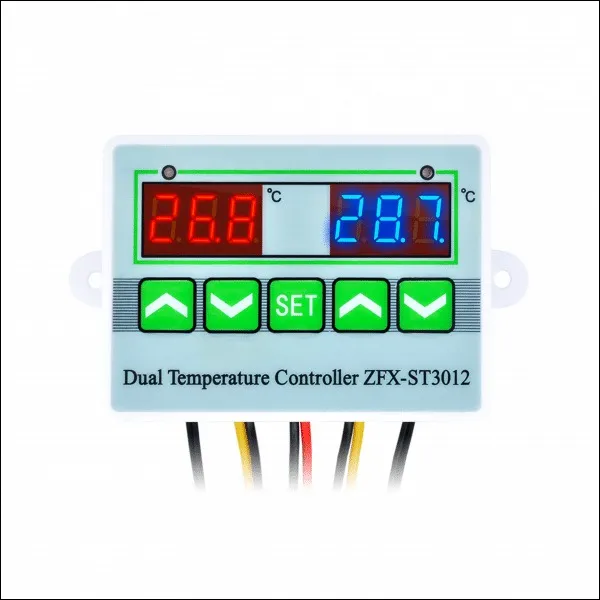

These are two independent thermostats with separate sensors in one controller.
The controller is designed for automatic temperature control in two places and devices.
The device has a built-in settings memory. When the power is disconnected, there is no need to reprogram the thermostat.
Clearly visible LEDs indicate an activated relay and an activated alarm.
Alarms are signaled by a sound and a display, as well as a flashing signal diode.
Input voltage (power): AC 230V, the thermostat does not need power.
Carrying capacity of relay contacts: 5A at AC 230V
Temperature measurement: -50°C - +110°C
Temperature measurement resolution: 0.1°C
Temperature update frequency: 0.5 s

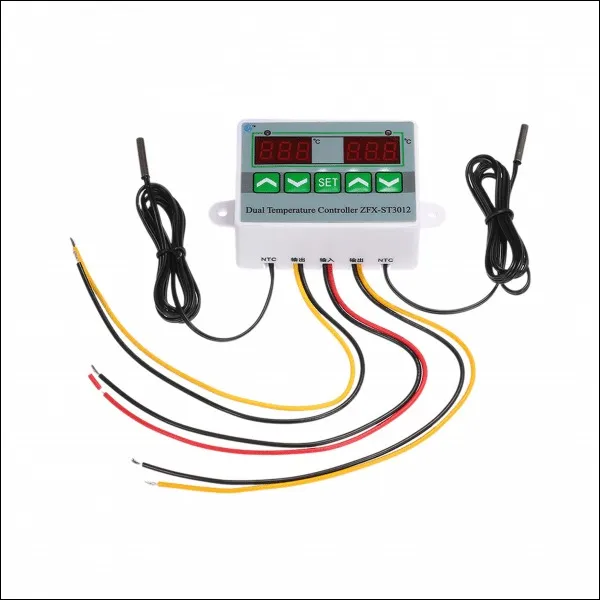

Temperature sensor: waterproof (stainless steel)
Sensor used: NTC10k/343S
Cable length with probe: 95cm
Length of the remaining wires: approx. 20cm
Probe diameter: 4 mm
Probe length: 20 mm
Displays: 2x LED 3 digits
Screen color: red
Signal LED color: green/red (relay/alarm)
Dimensions of the case without fasteners: 76 x 55 x 31mm
Distance between mounting holes: 88mm
Operating temperature: 0°C - 50°C
Weight: 100g
