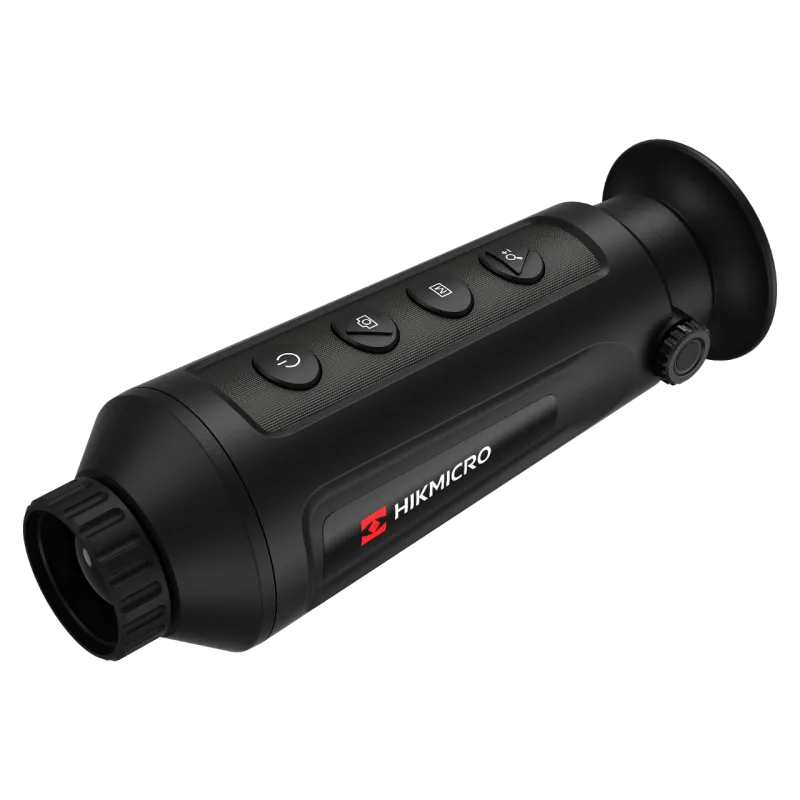

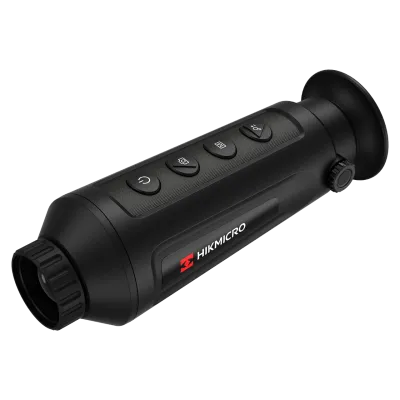

Pilt on illustratiivne
Termokaamera monokkel, 19mm, Hikvision 384 × 288px 0,4"LCD IP67
Toode ei ole saadaval
- Eraldusvõime 384 × 288
- Adaptiivne AGC, DDE, 3D DNR, NETD alla 35 mk (@25°C), F#=1.0
- 1280 × 960 eraldusvõimega 0.4-tolline LCOS- ekraan
- Sisseehitatud laetav liitiumaku
- Üle seitsme tunni pidev töötamine (kui Wi-Fi hotspot funktsioon on välja lülitatud)
- Wi-Fi hotspot leviala
- Type-C liides
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384×288
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 35 mK (@25°C),F#=1.0
Focal Length 19mm
Field Of View 13.8° × 10.4° (H × V)
Aperture F1.0
Magnification 1.86 to 14.88
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Image Display
Frame Frequency 50 Hz
Monitor 0.4 inch, LCOS, 1280× 960
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Smart Function
Wi-Fi Hot Spot Yes
Standby Mode Yes
System
Storage Built-in memory module (8 GB)
Record Video Yes
Capture Snapshot Yes
Power Supply
Battery Type Lithium battery
Battery Operating Time
7.5 hours continuous running with Wi-Fi hot spot function off (@25°C)
6 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display
Yes
General
Work Temperature/Humidity -20 °C to 55 °C
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Protection Level IP67
Dimension
171 mm × 61 mm × 57 mm
310 g
