Pilt on illustratiivne

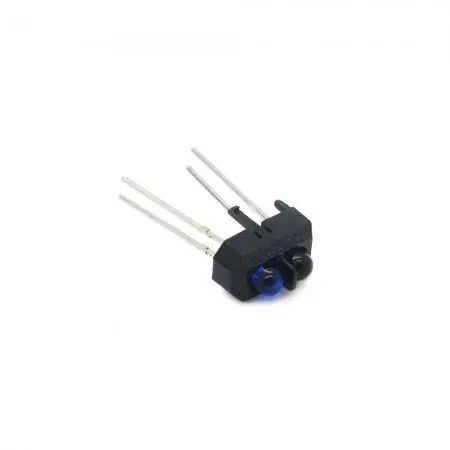

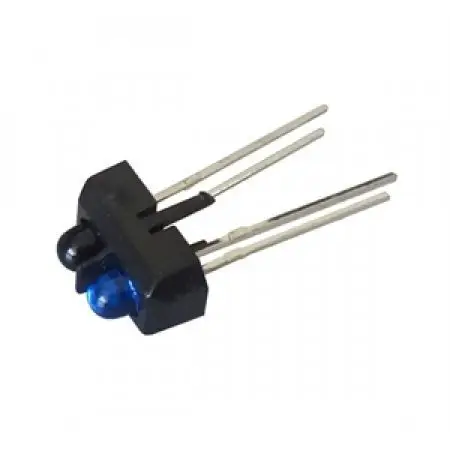

Fotoelektriline infrapuna sensor

  • Tootekood: TCRT5000L
Pealadu, Peterburi tee 90F, Tallinn 8
Peterburi tee Oomipood, Peterburi tee 90F, Tallinn 5
Lõunakeskuse Oomipood, Ringtee 75, Tartu 1

Snap-in construction for PCB mounting

Package height: 7 mm

Plastic polycarbonate housing construction which prevents crosstalk

Current transfer ratio(CTR) of typical 10%


Sensing Distance:12mm
Operating Wavelength:950 mm
Package Height:7 mm
Sensing Method:Reflective
Reverse Voltage:5V
Forward Current:60mA
Forward Surge Current:3A
Emitter Power Dissipation:100mW
Collector Emitter Voltage:70V
Emitter Collector Voltage:5V
Collector Current:100mA
Detector Power Dissipation:100mW
Sensor Total Power Dissipation:200mW
Operating Temperature:-25°C ~ +85°C
