MOC3020M
SKU:MOC3020M

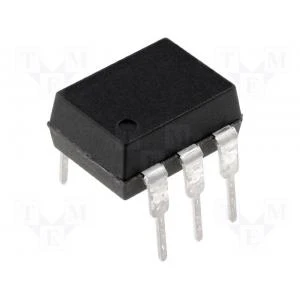

Image is for illustrative purposes only
The MOC3020M is an optically isolated triac driver, providing a dependable interface between electronic controls and power triacs for managing resistive and inductive loads in 115 VAC operations. This device offers reliable performance by integrating a GaAs infrared emitting diode and a light-activated silicon bilateral switch, effectively functioning as a triac.
Key Features
- Excellent IFT Stability: The IR Emitting Diode is designed for low degradation, ensuring long-term performance.
- Peak Blocking Voltage: 400 V.
- Safety and Regulatory Approvals: UL1577, 4,170 VACRMS for 1 Minute; DIN EN/IEC60747-5-5.
- High Isolation Voltage provides enhanced safety.
Applications
- Industrial Controls
- Solenoid/Valve Controls
- Traffic Lights
- Static AC Power Switch
- Vending Machines
- Incandescent Lamp Dimmers
- Solid State Relays
- Motor Control
- Lamp Ballasts
- Consumer Appliances
- Industrial Motor
- Connected Lighting
- Industrial Drives
Important Usage Information
The MOC3020M is suitable for “safe electrical insulation” only within the specified safety limit data, which is ensured by protective circuits. Please note that it is designed to function as a trigger device and should not be used to directly drive a load.
Key Features
- Excellent IFT Stability: The IR Emitting Diode is designed for low degradation, ensuring long-term performance.
- Peak Blocking Voltage: 400 V.
- Safety and Regulatory Approvals: UL1577, 4,170 VACRMS for 1 Minute; DIN EN/IEC60747-5-5.
- High Isolation Voltage provides enhanced safety.
Applications
- Industrial Controls
- Solenoid/Valve Controls
- Traffic Lights
- Static AC Power Switch
- Vending Machines
- Incandescent Lamp Dimmers
- Solid State Relays
- Motor Control
- Lamp Ballasts
- Consumer Appliances
- Industrial Motor
- Connected Lighting
- Industrial Drives
Important Usage Information
The MOC3020M is suitable for “safe electrical insulation” only within the specified safety limit data, which is ensured by protective circuits. Please note that it is designed to function as a trigger device and should not be used to directly drive a load.
Peak Blocking Voltage: 400 V
Isolation Voltage: 4170 Vrms (UL1577 for 1 minute), 5000 Vrms, 5300 VAC(RMS) minimum
Trigger Current IFT (Max): 30 mA
Holding Current IH (Typ): 100 uA
Off-State Leakage Current IDRM (Max): 100 uA
Isolation Voltage: 4170 Vrms (UL1577 for 1 minute), 5000 Vrms, 5300 VAC(RMS) minimum
Trigger Current IFT (Max): 30 mA
Holding Current IH (Typ): 100 uA
Off-State Leakage Current IDRM (Max): 100 uA
