Advanced Semiconductor Analyzer (Curve Tracing)
SKU:DCA75
Manufacturer:PEAK electronic design ltd
Image is for illustrative purposes only

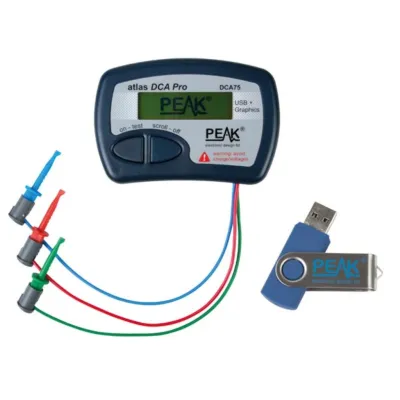

The DCA Pro has an advanced new design that features a graphics display, USB communications, PC software and an enhanced component identification library.stand-alone or with a PCautomatic component type identificationautomatic pinout identificationspecial feature identification such as protection diodes and resistor shuntsbipolar transistors: gain and leakage current measurements, silicon and germanium detectiongate threshold measurement for Enhancement Mode MOSFETssemiconductor forward voltage measurement for diodes, LEDs and
transistor Base-Emitter junctionsautomatic and manual power-off
transistor Base-Emitter junctionsautomatic and manual power-off
Primary colours: Grey
Additional colours: Black
Depth unit: 20 mm
Height unit: 70 mm
Width unit: 103 mm
Weight unit: 98 g
Maximum peak test current into s/c: 12 mA
Maximum peak test voltage across o/s: 12 V
Diode specs: Test current: 5.0 mA Voltage accuracy: -2% -20 mV to +2% +20 mV Vf for LED identification: 1.50 V - 4.00 V Short circuit threshold: 10 Ohm
SCR/triac specs: Gate test current: 4.5 mA Load test current: 5.0 mA
Transistor specs: Gain range (Hfe): 4 - 65000 Gain accuracy: ± 3 % ± 5 Hfe Vceo test voltage: 2.0 V - 3.0 V Vbe accuracy: -2 % -20 mV to +2 % +20 mV VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V) Base-emitter shunt threshold: 50 kOhm - 70 kOhm BJT collector test current: 2.45 mA - 2.55 mA BJT acceptable leakage: 0.7 mA MOSFET: Gate threshold range: 0.1 V - 5.0 V Threshold accuracy: -2 % -20 mV to +2 % +20 mV Drain test current: 2.45 mA - 2.55 mA Gate resistance: 8 kOhm Depletion drain test current: 4.5 mA JFET drain-source test current: 0.5 mA - 5.5 mA
Operating temperature range: 10-40 °C
Number of batteries: 1
Battery voltage rating: 1.5 V
Battery composition: Alkaline
Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
Additional colours: Black
Depth unit: 20 mm
Height unit: 70 mm
Width unit: 103 mm
Weight unit: 98 g
Maximum peak test current into s/c: 12 mA
Maximum peak test voltage across o/s: 12 V
Diode specs: Test current: 5.0 mA Voltage accuracy: -2% -20 mV to +2% +20 mV Vf for LED identification: 1.50 V - 4.00 V Short circuit threshold: 10 Ohm
SCR/triac specs: Gate test current: 4.5 mA Load test current: 5.0 mA
Transistor specs: Gain range (Hfe): 4 - 65000 Gain accuracy: ± 3 % ± 5 Hfe Vceo test voltage: 2.0 V - 3.0 V Vbe accuracy: -2 % -20 mV to +2 % +20 mV VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V) Base-emitter shunt threshold: 50 kOhm - 70 kOhm BJT collector test current: 2.45 mA - 2.55 mA BJT acceptable leakage: 0.7 mA MOSFET: Gate threshold range: 0.1 V - 5.0 V Threshold accuracy: -2 % -20 mV to +2 % +20 mV Drain test current: 2.45 mA - 2.55 mA Gate resistance: 8 kOhm Depletion drain test current: 4.5 mA JFET drain-source test current: 0.5 mA - 5.5 mA
Operating temperature range: 10-40 °C
Number of batteries: 1
Battery voltage rating: 1.5 V
Battery composition: Alkaline
Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
-
