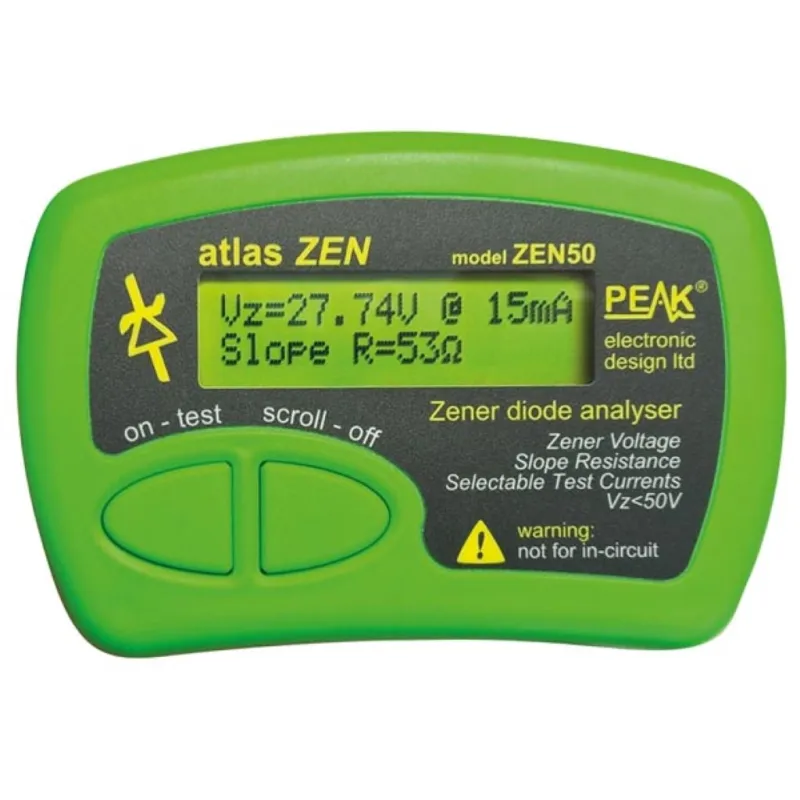

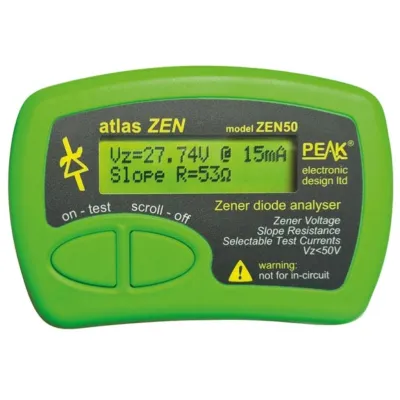

ATLAS ZEN - Zener Diode Analyzer (0 - 50 V)

SpecificationsProduct basic info
Primary colours: Green
Depth unit: 70 mm
Height unit: 103 mm
Width unit: 70 mm
Weight unit: 98 g
Material: ABS
Additional material: Glass, Metal

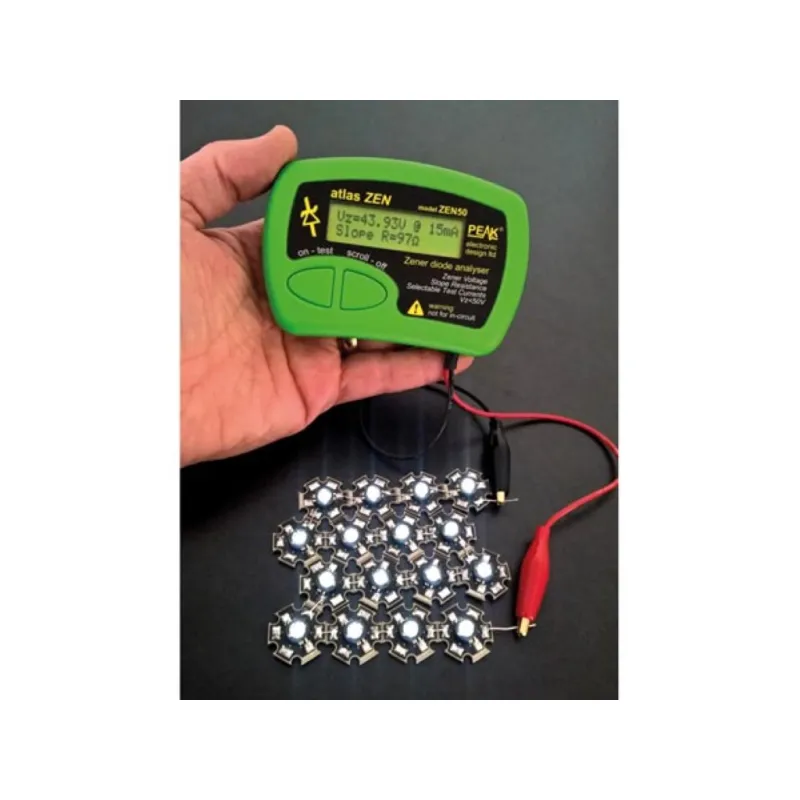

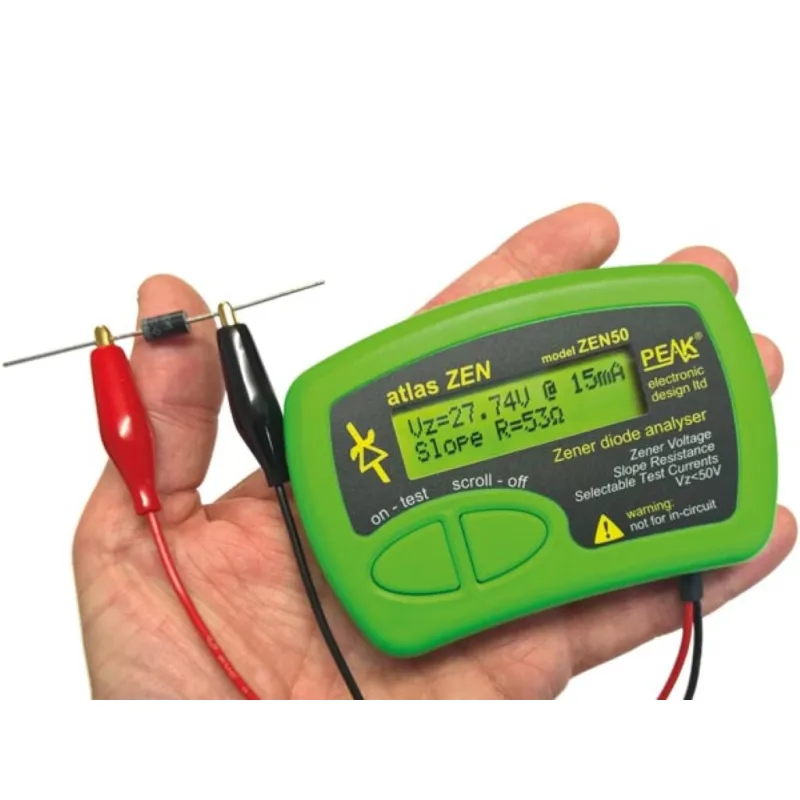

Detailed information: test Zener diodes, Avalanche diodes, VDRs, TVSs, LED strings and much more (up to 50 V) measures breakdown voltage (0.00 V to 50.00 V) with a resolution as fine as 20 mV measures slope resistance (up to 1 kO at 15 mA with a 1O resolution) supports most Zeners, Avalanche diodes and reference diodes from 0 V up to 50 V great for testing VDRs, TVSs and other types of voltage protection devices selectable test currents: 2 mA, 5 mA, 10 mA, 15 mA tiny duty cycle of test current to minimise heating of your component, even when testing at 50 V and 15 mA continuous measurement display (updated 3 times per second) hold-function to hold displayed values even if component is removed
General data
Specifications extra extra: slope resistance measurement accuracy: Iz = 2 mA (slope resistance measurement accuracy): ±1% ±10 Ohm Iz = 5 mA (slope resistance measurement accuracy): ±1% ±4 Ohm Iz = 10 mA (slope resistance measurement accuracy): ±1% ±2 Ohm Iz = 15 mA (slope resistance measurement accuracy): ±1% ±2 Ohm slope resistance current span: (Iz-50%) to (Iz+50%) slope resistance measurement method : differentiation of curve that fits:: (Iz-50%, Vz1), (Iz, Vz2), (Iz+50%, Vz3) measurement rate: 3 Hz auto-off period: 60 sec.
Specifications extra: slope resistance measurement range: Iz = 2 mA (slope resistance measurement range): 0-8000 Ohm Iz = 5 mA (slope resistance measurement range): 0-3200 Ohm Iz = 10 mA (slope resistance measurement range): 0-1600 Ohm Iz = 15 mA (slope resistance measurement range): 0-1000 Ohm displayed slope resistance resolution: Iz = 2 mA (displayed slope resistance resolution): 5 Ohm Iz = 5 mA (displayed slope resistance resolution): 2 Ohm Iz = 10 mA (displayed slope resistance resolution): 1 Ohm Iz = 15 mA (displayed slope resistance resolution): 1 Ohm
Specifications: specification summary at 20-25 °C (68-77 °F) unless otherwise specified Zener voltage range (Vz): 0.0 V - 50.0 V nominal test currents (Iz) : 2mA, 5mA, 10mA, 15mA set test current accuracy: ± 1 % ± 0.2 mA Zener voltage measurement accuracy: ± 1% ± 40 mV Zener voltage measurement resolution : 20 mV - 40 mV test frequency accuracy: -1.5% ~ +1.5% 60 V pulsed DC satisfies lower limit of 75 V(DC) for Low Voltage Directive 2006/95/EC test current into a short circuit (pulsed) : 35 mA test current duty cycle : min: 0.1% max: 5% typical: 1% duty cycle of test current designed to keep power dissipation of Zener under test to very low levels maximum external voltage: ± 50 V
Environmental data
Operating temperature range: 10-40 °C
Operational properties
Battery voltage rating range: 0.9-1.6 V
Power supply
Number of batteries: 1
Battery composition: Alkaline
Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
