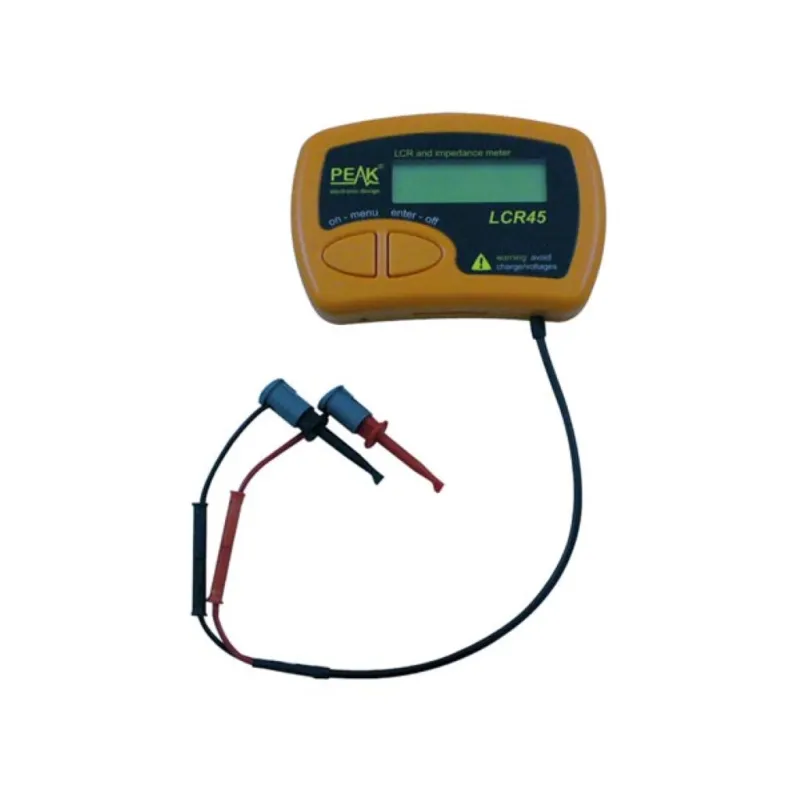

LCR meter
SKU:LCR45
Manufacturer:PEAK electronic design ltd
Image is for illustrative purposes only
Supplied with removable, gold-plated hook probes fluid measurements with hold function automatic or manual component type automatic or manual test frequency, DC, 1 kHz,15 kHz or 200 kHz
Enhanced measurement resolution: 0.2 µH, 0.2 pF and 0.2 Ohm easy menu system for user settings enhanced compensation for component parasitics and losses (such as core losses, etc.) automatic or manual power-off user manual: English only
Enhanced measurement resolution: 0.2 µH, 0.2 pF and 0.2 Ohm easy menu system for user settings enhanced compensation for component parasitics and losses (such as core losses, etc.) automatic or manual power-off user manual: English only
Instruction manual languages: English
Primary colours: Orange
Additional colours: Black
Depth unit: 3 mm
Height unit: 14 mm
Width unit: 20 mm
Weight unit: 165 g
Display type: Digital
Capacity: range: 0.5 pF to 10000 µF resolution: 0.2 pF accuracy: ± 1.5 % ± 0.6 pF
Resistance specifications: range: 0 Ohm to 2 MOhm resolution: 0.1 Ohm accuracy: ± 1.0 % ± 0.6 Ohm
Inductance specifications: range: 1 µH to 10 H resolution: 0.2 µH accuracy: ± 1.5 % ± 0.6 µH
Passive component impedance: Re & Im: ± 1.5 % ± 10 LSD magnitude: ± 1.5 % ± 10 LSD phase: ± 5 %
Measurement sample rate: 0.5-2 Hz
Peak test current thru s/c: -3.25-3.25 mA
Peak test voltage across o/c: -1.05-1.05 V
Sine purity: +60 dB 3rd harmonic
Test frequency accuracy: 1 kHz: ± 0.5 % 14.9254 kHz: ± 0.5 % 200 kHz: ± 0.5 %
Operating temperature °C: 10-40 °C
Operating temperature °F: 50-104 °F
Battery voltage rating range: 8.5-13 V
Number of batteries: 1
Battery composition: Alkaline
Battery IEC size: A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
Primary colours: Orange
Additional colours: Black
Depth unit: 3 mm
Height unit: 14 mm
Width unit: 20 mm
Weight unit: 165 g
Display type: Digital
Capacity: range: 0.5 pF to 10000 µF resolution: 0.2 pF accuracy: ± 1.5 % ± 0.6 pF
Resistance specifications: range: 0 Ohm to 2 MOhm resolution: 0.1 Ohm accuracy: ± 1.0 % ± 0.6 Ohm
Inductance specifications: range: 1 µH to 10 H resolution: 0.2 µH accuracy: ± 1.5 % ± 0.6 µH
Passive component impedance: Re & Im: ± 1.5 % ± 10 LSD magnitude: ± 1.5 % ± 10 LSD phase: ± 5 %
Measurement sample rate: 0.5-2 Hz
Peak test current thru s/c: -3.25-3.25 mA
Peak test voltage across o/c: -1.05-1.05 V
Sine purity: +60 dB 3rd harmonic
Test frequency accuracy: 1 kHz: ± 0.5 % 14.9254 kHz: ± 0.5 % 200 kHz: ± 0.5 %
Operating temperature °C: 10-40 °C
Operating temperature °F: 50-104 °F
Battery voltage rating range: 8.5-13 V
Number of batteries: 1
Battery composition: Alkaline
Battery IEC size: A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
-
