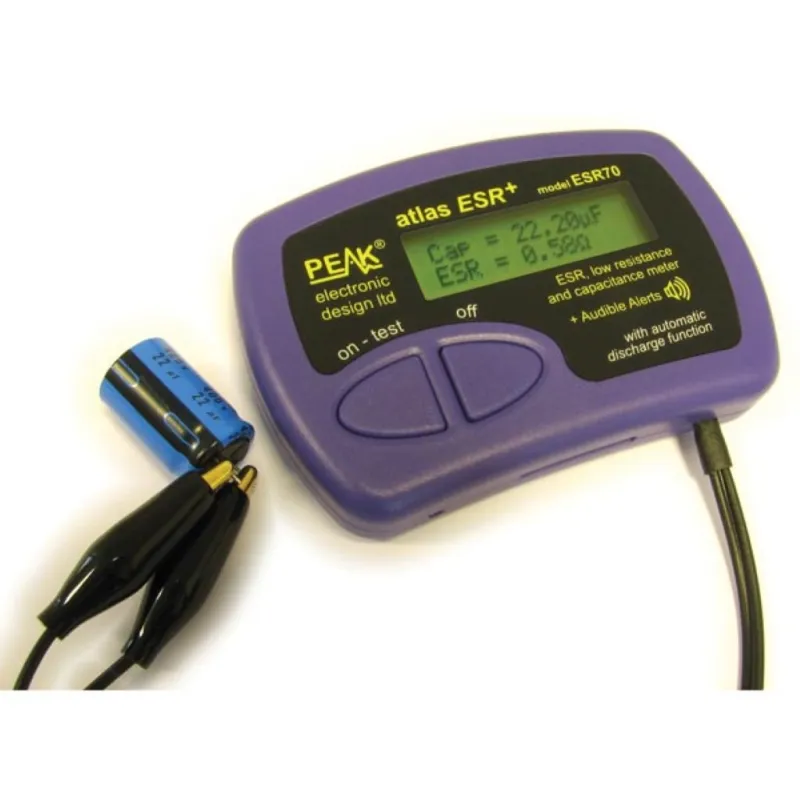

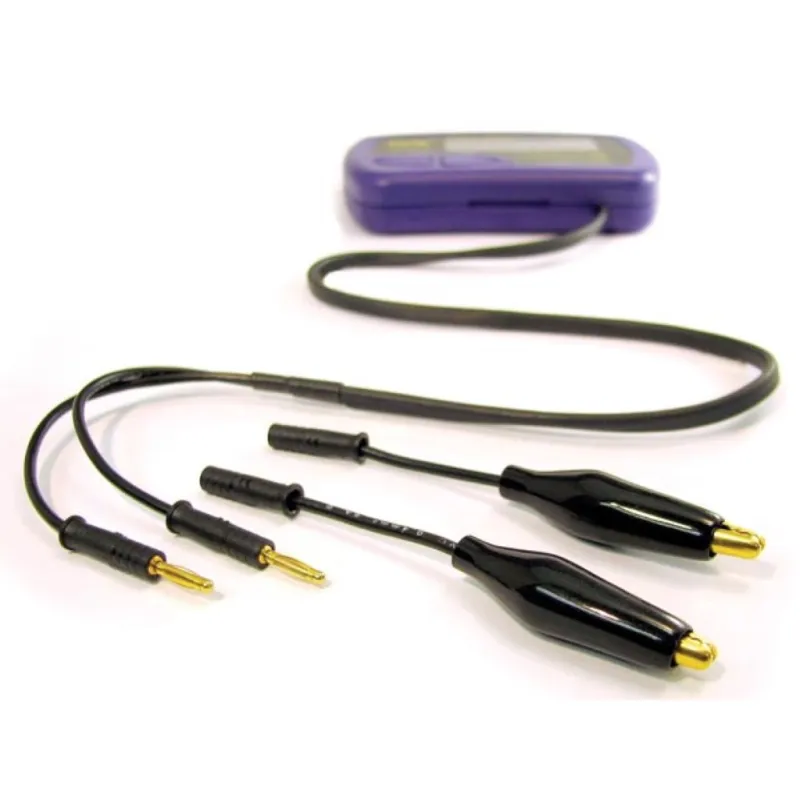

ESR / Low Resistance and Capacitance Meter
SKU:ESR70
Manufacturer:PEAK electronic design ltd
Image is for illustrative purposes only
ESR measurement range 0 to 40 OhmESR resolution as low as 0.01 Ohmcapacitance range 1µF…22mF (22,000µF)can also be used for low-Ohms resistance checkingbuilt-in protection circuitry means risk of damage to the
unit due to residual charge is greatly reducedintegrated controlled discharge circuitry reduces the need
for the user to manually discharge capacitors before testuse in or out of circuit for ESR measurementautomatic and manual power-offwith audible alertsuser manual: English only
unit due to residual charge is greatly reducedintegrated controlled discharge circuitry reduces the need
for the user to manually discharge capacitors before testuse in or out of circuit for ESR measurementautomatic and manual power-offwith audible alertsuser manual: English only
Instruction manual languages: English
Primary colours: Purple
Additional colours: Black
Depth unit: 20 mm
Height unit: 70 mm
Width unit: 103 mm
Weight unit: 98 g
Material: ABS
Detailed information: Measuring Range: 0 Ohm ~ 40 Ohm Resolution (ESR < 2 Ohm): 0.01 Ohm ~ 0.02 Ohm Resolution (ESR > 2 Ohm): 0.1 Ohm ~ 0.2 Ohm Accuracy (ESR < 2 Ohm): ± 1.5 % ± 0.02 Ohm Accuracy (ESR > 2 Ohm): ± 1.5 % ± 0.2 Ohm Abuse Voltage C < 10 µF ± 275 V; C > 10 µF ± 50 V Auto-Discharge Voltage Limit: ± 50 V
Operating temperature range: 10-35 °C
Battery voltage rating range: 8.5-12 V
Capacitance measurement range: 1-22000 µF
Auto shut-off time: 60 s
Number of batteries: 1
Battery voltage rating: 12 V
Voltage warning threshold: 8.5 V
Battery composition: Alkaline
Battery IEC size: A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
Primary colours: Purple
Additional colours: Black
Depth unit: 20 mm
Height unit: 70 mm
Width unit: 103 mm
Weight unit: 98 g
Material: ABS
Detailed information: Measuring Range: 0 Ohm ~ 40 Ohm Resolution (ESR < 2 Ohm): 0.01 Ohm ~ 0.02 Ohm Resolution (ESR > 2 Ohm): 0.1 Ohm ~ 0.2 Ohm Accuracy (ESR < 2 Ohm): ± 1.5 % ± 0.02 Ohm Accuracy (ESR > 2 Ohm): ± 1.5 % ± 0.2 Ohm Abuse Voltage C < 10 µF ± 275 V; C > 10 µF ± 50 V Auto-Discharge Voltage Limit: ± 50 V
Operating temperature range: 10-35 °C
Battery voltage rating range: 8.5-12 V
Capacitance measurement range: 1-22000 µF
Auto shut-off time: 60 s
Number of batteries: 1
Battery voltage rating: 12 V
Voltage warning threshold: 8.5 V
Battery composition: Alkaline
Battery IEC size: A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
-
LCR40193.00 €Customer price183.35 €-5%
