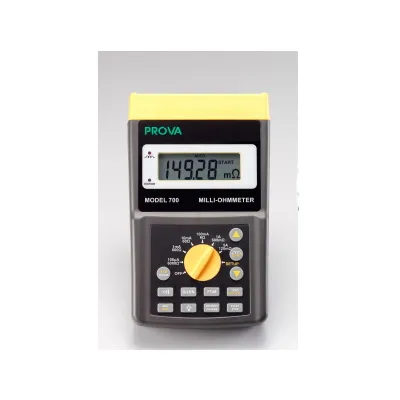

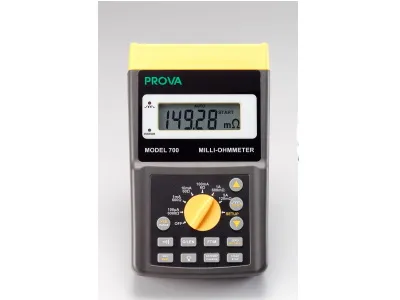

Milliohm meter: 5A ( TES )

• Measuring range:
  5A
  1,000 mΩ - 8.000 mΩ ( resolution 1µΩ; accuracy: +-0.25%+-25µΩ)
  5,00 mΩ - 32.00 mΩ ( resolution 10µΩ; accuracy: +-0.25%+-250µΩ)
  10,00 mΩ - 120.00 mΩ ( resolution 10µΩ; accuracy: +-0.25%+-250µΩ)

  1A
  4.00 mΩ - 40.00 mΩ ( resolution 10µΩ; accuracy: +-0.25%+-250µΩ)
  15,00 mΩ - 16.00 mΩ ( resolution 10µΩ; accuracy: +-0.25%+-250µΩ)
  50,00 mΩ - 600.00 mΩ ( resolution 10µΩ; accuracy: +-0.25%+-250µΩ)

  100mA
  40.0 mΩ - 0.4Ω ( resolution 100µΩ; accuracy: +-0.25%+-2.5mΩ)
  0.15Ω - 1.6Ω ( resolution 100µΩ; accuracy: +-0.25%+-2.5mΩ)
  0.5Ω - 6.0000Ω ( resolution 100µΩ; accuracy: +-0.25%+-2.5mΩ)

  10mA
  0.4Ω - 4Ω ( resolution 1mΩ; accuracy: +-0.25%+-25mΩ)
  1.5Ω - 16Ω ( resolution 1mΩ; accuracy: +-0.25%+-25mΩ)
  5Ω - 60Ω ( resolution 1mΩ; accuracy: +-0.25%+-25mΩ)

  1mA
  4Ω - 40Ω ( resolution 10mΩ; accuracy: +-0.25%+-250mΩ)
  1.5Ω - 16Ω ( resolution 10mΩ; accuracy: +-0.25%+-250mΩ)
  5Ω - 60Ω ( resolution 10mΩ; accuracy: +-0.25%+-250mΩ)

  0.1mA
  40Ω - 400Ω ( resolution 100mΩ; accuracy: +-0.75%+-3Ω)
  150Ω - 1600Ω ( resolution 100mΩ; accuracy: +-0.75%+-3Ω)
  500Ω - 6000Ω ( resolution 100mΩ; accuracy: +-0.75%+-3Ω)

• power: Rechargable Lithium battery, 1600mAH(11,1V)
  charging time: 10h ( 230VAC/15VDC(1-3A) adapter)
• dimensions / weight: 257 x 155 x 57mm / 1160g
• operating temperature: -20...60°C
• accessories included: RS232/USB cable; rech.battery; AC adapter; manual, software CD, Kelvin clips
