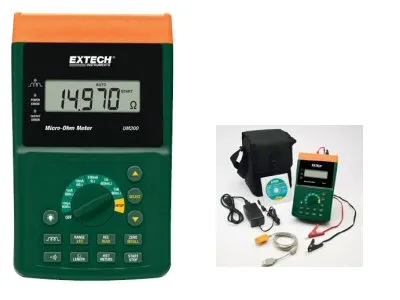

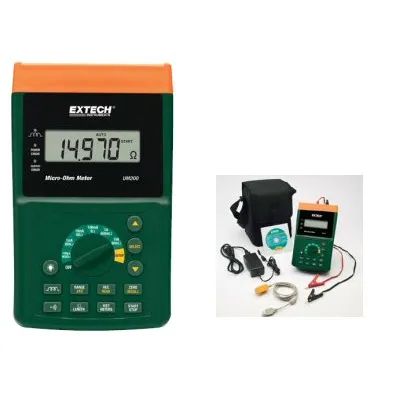

UM200 : High Resolution ( 1µOhm ) Micro-Ohm Meter ( Extech )

• max. test current: 10A
• 6 ranges, 4 current sub-ranges
• automatic/manual ranges; HOLD-function
•   range / resolution / current / accuracy:
     60mΩ  / 1µΩ       / 10A     / +-0,25% +25 µΩ
   600mΩ  / 10µΩ     / 1A        / +-0,25% +250 µΩ
          6Ω  / 100µΩ   / 0,1A    / +-0,25% +2,5 mΩ
        60Ω  / 1mΩ      / 10mA   / +-0,25% +25 mΩ
      600Ω  / 10mΩ    / 1mA      / +-0,25% +250 mΩ
       6kΩ  / 100mΩ    / 0,1mA      / +-0,75% +3 mΩ
• 5-digit LCD screen, with backlight
• internal comparator for Hi/Lo resistance test
   20 pre-programmed alarm limits
• memory: 3000 measurements
• cable lenght measuring function
• PC interface ; USB cable included
• 4-terminal Kelvin-clips and wires
• empty battery alarm
•  internal clock-calendar
• operating temperature: 0...+50°C
• power: rechargable battery ( 3400mAh Li-polymer( 11,1V ) ; charging time: 10 h )) & adapter( 15VDC ( 1-3A))
• size/weight: 257 x 155 x 57mm / 1,16kg
• includes: manual, USB cable, instrument, AC/DC adapter/charger; Kelvin clips; software CD, soft case, rech.battery

• datasheet: UM200
      manual: UM200
